Cylinder Dispensing Cabinets

Cylinder dispensing cabinets are specialized storage units designed for the safe and reliable dispensing of propane from bulk tanks to fill portable cylinders or vehicle tanks. IPS Equipment’s custom cabinets are made from tread-bright aluminum and feature locking doors, anchoring points, and ventilation systems to keep contents secure and to prevent unauthorized access. Keep reading to learn more about our custom dispensing cabinets and the manufacturing options available.

Critical Cabinet Features

Cylinder dispensing cabinets from IPS Equipment have multiple features that streamline storage, security, and personnel safety. These include:

Secure Storage. Our cabinets keep dispensing equipment safe with doors that lock and sturdy anchoring points that prevent unauthorized access or accidental tipping, which could cause injuries.

Ventilation. Many of our cylinder dispensing cabinets include ventilation to exhaust potential leaks and the build-up of flammable/toxic gases.

Durable Construction. These cabinets are constructed from aluminum for long-lasting performance and protection of dispensing equipment.

Dispensing Features. Cabinets can be manufactured with equipment to streamline the dispensing process.

Compliance. Our cylinder dispensing cabinets meet or exceed safety standards like OSHA regulations and NFPA standards for full compliance with industry regulations.

Applications of Cylinder Dispensing Cabinets

Our cylinder dispensing cabinets are used by propane retailers and authorized sellers to fill portable propane cylinders. We offer a variety of sizes, configurations, and optional equipment so you can specify the features that meet your unique requirements. Our team can also work with you to select features and equipment for your application.

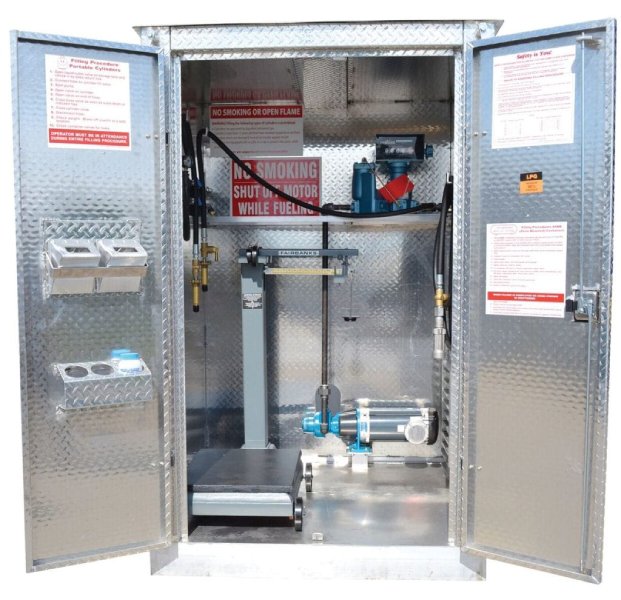

Propane Dispensing Cabinets from IPS

IPS is a full-service turnkey systems integrator and equipment supplier. Our cabinets are custom manufactured to your specifications. They are available in a range of sizes and configurations, including walk-in models. Options are available for skid and trailer setups, electronic scale and valve controls, and other custom designs.

Basic specs for cabinets include:

Available in 4x4x4 or 4x4x6 Tread-Bright aluminum
Blackmer^® Pump, RegO^® Valves, Neptune Meter, Parker Hoses
1” Neptune Meter with 600 Register Head
18’ Motor Fuel Line

Meter Vapor Return Components
Tread-Bright Aluminum
1” Blackmer^® Pump
1000# Single Beam Scale
RegO^® Valves & Fittings

Custom-built to your specifications
1 ^½ HP Marathon Motor
Cylinder Fill Line
Pump Inlet Components
On-Site Meter Calibration & Scale Certification Available

Skid Packages Include:

4’ X 4’ X 6’ Tread-Bright aluminum cabinet
1” Blackmer^® pump w/ 1^½ HP Motor
1” meter with register head
1000# single beam scale
Cylinder fill line
18’ motor fuel line

RegO^® valves and fittings
Meter vapor return components
Pair of tank legs
Pump inlet package
Pump bypass package
Decal package

Electrical package
Full skid – fabricated to provide a heavy-duty foundation for the tank, dispenser, and piping system
Optional purge system
On-Site Meter Calibration & Scale Certification Available

Additional Advanced Technology Options Include:

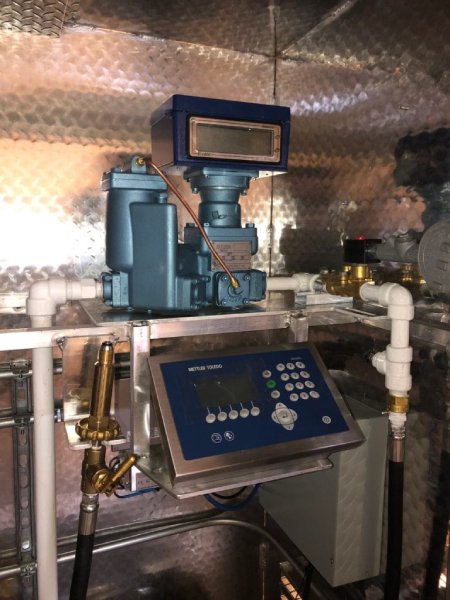

Mettler Toledo Electronic Scale
Hanbay Electronic Value Operator
Electrical Package

6 ft. Walk-In Style Cabinets Include:

4’ X 4’ X 6’ Tread-Bright aluminum cabinet
1” Blackmer^® pump w/ 1^½ HP Motor
1” meter with register head
1000# single beam scale
Cylinder fill line

18’ motor fuel line
RegO^® valves and fittings
Meter vapor return components
Pair of tank legs
Pump inlet package

Pump bypass package
Decal package
Electrical package
Optional purge system
On-site meter calibration available

4 ft Cabinets Include:

4’x4’x4’ Tread-Bright aluminum cabinet
1” Blackmer^® pump w/ 1^½ HP Motor
1” meter with register head
1000# single beam scale
Cylinder fill line

18’ motor fuel line
RegO^® valves and fittings
Pump inlet components
Meter vapor return components
Pair of tank legs

Decals to your specifications
Electrical package
Optional purge system
On-site meter calibration available

Contact IPS Equipment

Cylinder dispensing cabinets are a critical tool for safely storing and dispensing bulk liquid propane. It’s essential to partner with an experienced and reliable provider who understands your needs, and can manufacture cabinets that meet them. At IPS we supply custom cylinder dispensing cabinets, autogas dispensers, additive injection systems, cylinder evacuation systems and more.

Contact us today to learn more about our fully customized cylinder dispensing cabinets and to discuss your facility’s requirements.
